Siga Circuit
Description
Siga Circuit is a narrow 104 ohms seam bridging tape cut from on Sigaway® Electronic.
Availability
SKU 7485-4025 Rolls 1.6" x 82'6" (40 mm x 25 m 6 rolls/box)
SKU 7485-20025 Rolls 8" x 82'6" (200 mm x 25m 5 rolls/box)
Applications
When installing ESD conductive rolls of carpet or vinyl with fully integral conductive backings, a lower cost alternate installation system may be used: Use lower cost Sigaway® Original a non-conductive full surface dry adhesive and bridge the seams between individual full surface conductive backed rolls or pieces of ESD carpet or vinyl rolls.

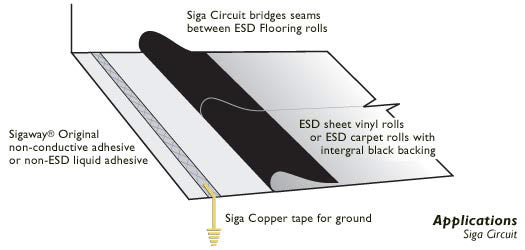

Siga Circuit is applied on top of the Sigaway® Original 1 ' from walls on the entire perimeter of the installation every 30 ft. approx. across the seams, and grounded with Siga Copper Tape.
ESD roll flooring with fully conductive backings are then installed over the Sigaway® with Siga Circuit adhesive. 8" wide tape is frequently used to electrically bridge loose lay matting head to head or side to side.
Siga Circuit is a narrow 104 ohms seam bridging tape cut from on Sigaway® Electronic.
Availability
SKU 7485-4025 Rolls 1.6" x 82'6" (40 mm x 25 m 6 rolls/box)
SKU 7485-20025 Rolls 8" x 82'6" (200 mm x 25m 5 rolls/box)
Applications
When installing ESD conductive rolls of carpet or vinyl with fully integral conductive backings, a lower cost alternate installation system may be used: Use lower cost Sigaway® Original a non-conductive full surface dry adhesive and bridge the seams between individual full surface conductive backed rolls or pieces of ESD carpet or vinyl rolls.
Siga Circuit is applied on top of the Sigaway® Original 1 ' from walls on the entire perimeter of the installation every 30 ft. approx. across the seams, and grounded with Siga Copper Tape.
ESD roll flooring with fully conductive backings are then installed over the Sigaway® with Siga Circuit adhesive. 8" wide tape is frequently used to electrically bridge loose lay matting head to head or side to side.
|
