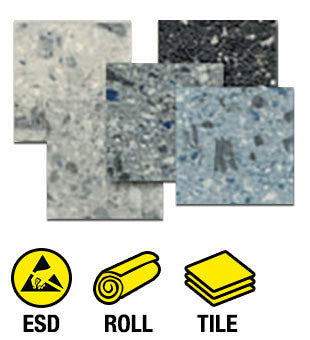

ESD Conductive Euro-Flex Role and Tile

ESD Conductive Euro-Flex™


Physical Properties and Installation & Maintenance


Description
ESD euro-flex™ is a semi-glossy permanently ESD conductive < 106 ohms vinyl industrial flooring product.

Manufacturing Technology
Co-extrusion process with full surface conductive backings

Recommended Application
Microchip and Electronics Manufacturing; Explosives and Munitions manufacturing; Military applications; Airport control towers Computer data centers, ESD sensitive areas in medical facilities.

Availability
Rolls: 4'6" x 66' x .080" gauge
(1.4m x 20m x 2.0mm gauge)

Tiles: 24" x 24" x .080" gauge
(608 x 608mm x 2.0 mm gauge)

Weight
Rolls: 297 sft./roll = 185 lbs./roll (84 Kg/box)
Tiles: 15 tiles/box (60 sft.) = Weight/box 38 lbs. (18 Kg/box)

Colors

Color Match and marbleization are subject to commercial tolerances. No claims for visible defects or shade matching are accepted after installation.

Installation Video using UZIN KE 2000 SL Conductive Adhesive
